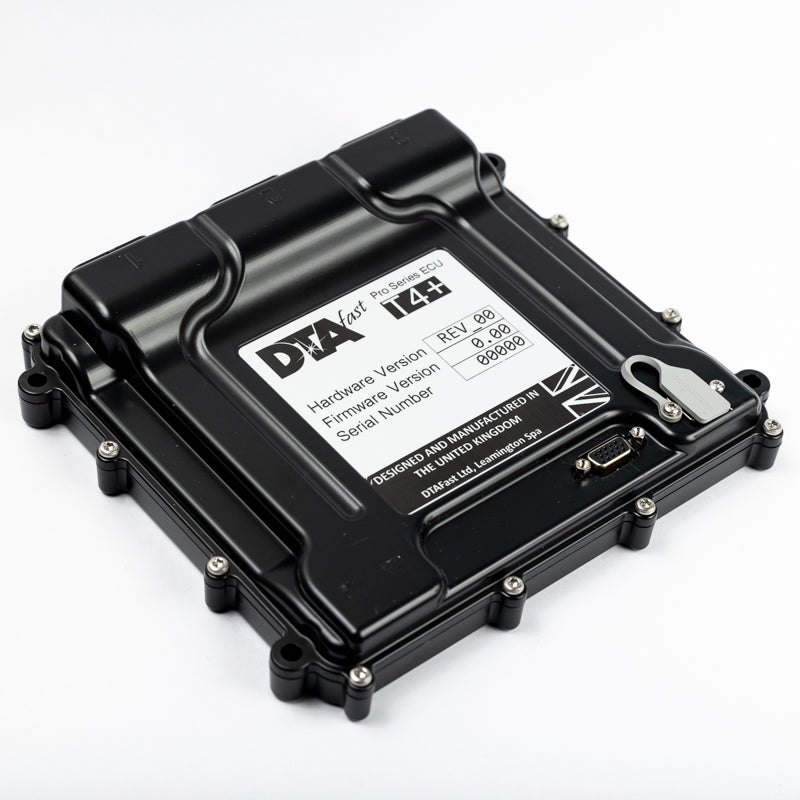

DTA Fast

T4+ ECU

$1,399.00
  • T4+ ECU

DTA Fast

T4+ ECU

$1,399.00

PLEASE NOTE: KNOCK CONTROL AVAILABLE FROM LATE 2023 VIA FREE FIRMWARE UPDATE

The T4+ is the ideal choice for running a 4-cylinder engine fully sequentially with single variable cam control, single fly-by-wire
throttle and single knock control. It can also run 6 or 8 cylinder engines semi-sequentially.

T-Series engine control units are powered by an all-new, automotive specific, multi-core processor. They feature Bosch lambda
controllers for maximum accuracy, multiple safety redundancies, high resolution map tables, fully configurable I/O and up to
32MB of logging at up to 500 Hz with compression algorithms for fast log downloads. The PC software has a user-friendly, responsive
design for better readability on high resolution monitors using high scaling (DPI). It features a full oscilloscope for
crankshaft/camshaft signal analysis and allows firmware to be upgraded without special cables or separate software.

T4+ ECU Wiring Diagram

Inputs:

Analogue (0-5v) 8
Digital 3
Thermistor (NTC) 3
Wheel Speed 2
Wideband Lambda 1
Knock 1



Outputs:

Digital (PWM) 8
Coil Drivers 4
Injector Drivers 4
Cam Solenoid Drivers 1
H-Bridge (FBW) Drivers 1



Control Strategies:

Auxiliary PWM Control
Pit Limiter
Launch Control
Flat-shift Control
VTEC Control
Boost Control
Idle Control
Wideband Lambda single
Variable Cam Control single
Traction Control
Wet/Dry Traction
Fly-by-wire Control single
Knock Control single
Paddle-shift Control



Communications:

USB For PC connection
Serial For dyno box connection
CAN bus For communication with
dashboards, power
distribution modules,
dataloggers etc.



Miscellaneous:

Dimensions 188x176x25-42mm
Weight 916g
Material billet aluminum
Ingress Protection IP67
Hardware Upgradeable No
